Swapping a Switch and an Outlet, in the Right Order

Buy the tester before you buy the switch. A non-contact voltage tester — the pen-shaped kind that chirps near a live wire — is the cheapest tool in the house that can keep you out of the hospital. Klein and Fluke both make one. Get it, and get a plug-in outlet tester with a GFCI button while you're there. Those two things cost less than a decent pizza night and they turn this job from a gamble into a procedure.

Then, before you touch anything, go look at the device you want to replace. Not the breaker panel. The device.

Read what you've got

Pull the cover plate off with a flat screwdriver. Two minutes of looking saves an hour of confusion.

On a receptacle, count the cables coming into the box. One cable (a black, a white, a bare copper) means you're at the end of the run. Two cables means the circuit passes through this box on its way somewhere else, and whatever you do here affects the outlets downstream. Look at the receptacle's face for a number: 15A and 20A are the common ones. Look at the wire itself. Ordinary 14-gauge copper is about the thickness of a coat hanger wire; 12-gauge is noticeably beefier. Don't put a 20-amp receptacle on 14-gauge wire.

On a switch, count the screws. Two brass-colored screws plus a green one is a single-pole switch, the simple case. Three screws with one of them a different color — usually black or dark bronze — is a three-way switch, meaning two switches control the same light. That one is still doable, but you have to mark the odd screw's wire with tape before you loosen anything. Get those two wires swapped and the light will work from one switch and fight you from the other.

If you see two white wires and two black wires all bunched together with the switch spliced into the middle, or a red wire you can't account for, take a photo and stop reading the internet. Ask an electrician what you're looking at.

Kill the power and prove it

Find the breaker. Flip it. Now go back and prove it's dead, because breaker labels lie constantly — the handwriting in most panels was done by somebody who was in a hurry in 1994.

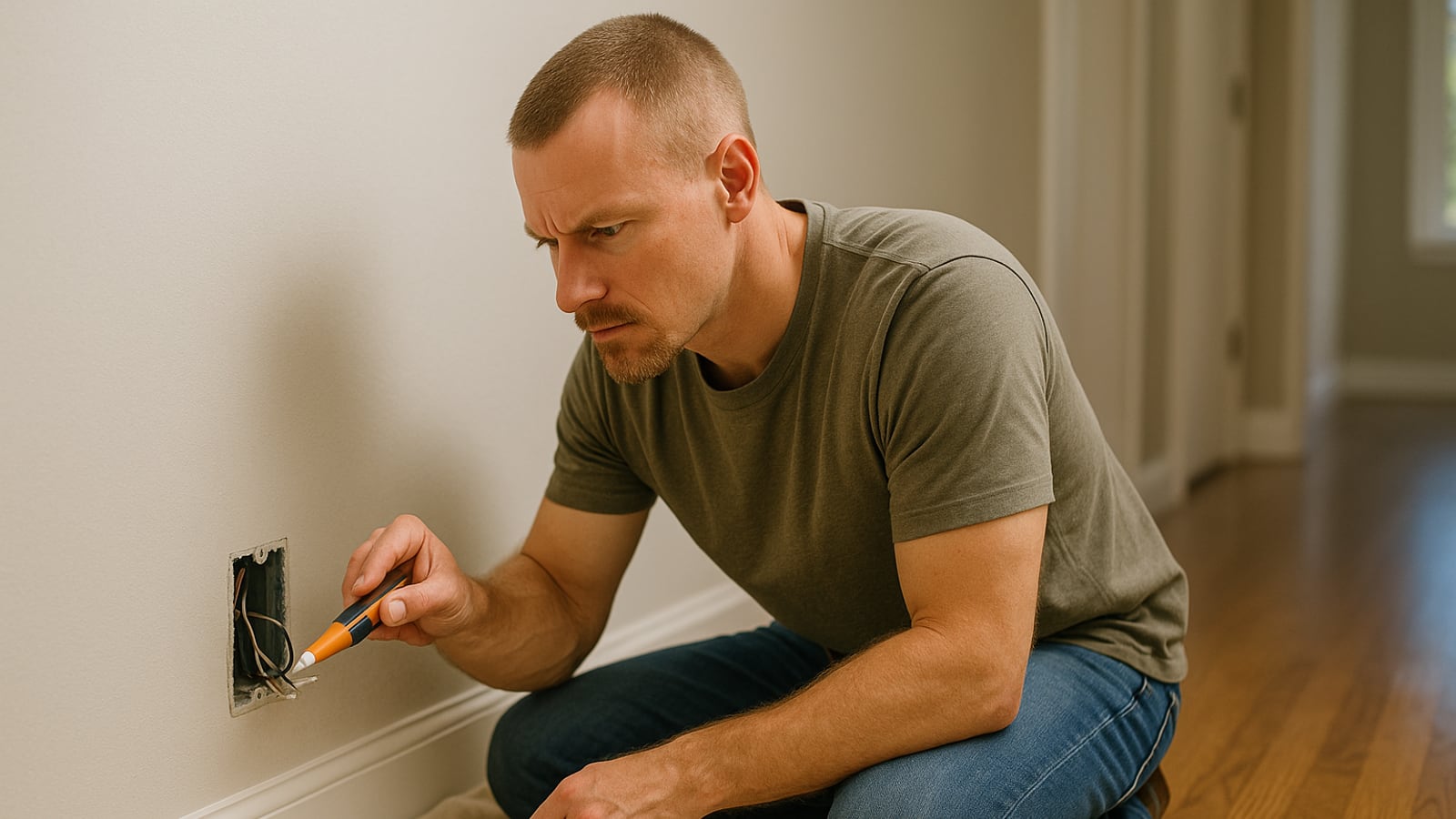

Touch the tester to a known-live outlet somewhere else in the house first. If it doesn't chirp, the battery's flat, and a dead tester is worse than no tester. Then test the device you're working on. For a receptacle, test both slots of both halves. For a switch, test with the switch in the on position and the off position, and test the screw terminals directly once the device is out of the box, because a switch loop can have a live wire sitting there quietly even when the light won't come on.

Here's the failure mode that catches people. Some boxes carry two different circuits. Old kitchens do this a lot, and so do split receptacles where the top half is switched and the bottom is always hot. One breaker kills half the box. The tester will tell you. Listen to it.

If anything smells burnt, looks charred, or feels warm, the job just changed. Warm wiring is a warning, not an inconvenience.

Photograph, label, remove

Take a picture of the wiring before you loosen a single screw. Every time. Phone camera, flash on, close enough to see which screw has which color.

Then remove the two long screws holding the device to the box and pull it forward. The wires will be short and stiff and they'll resist. That's normal.

Now look at how the old device is connected. Screws on the sides, with the copper hooked around them, is the good way. Wires shoved into little holes in the back — back-stabbed — is the fast way, and it's the single most common cause of an outlet that dies for no apparent reason. Those holes rely on a tiny spring clip. I've pulled a receptacle out of a hallway in a house built in the seventies where half the bedroom had gone dark, and the whole problem was one back-stab connection that had lost its grip on a warm black wire. The wire slid out with almost no pull at all.

To release a back-stabbed wire, push a small flathead into the slot next to the hole and pull. Don't yank.

Wire the new one properly

Strip fresh copper. About three-quarters of an inch of bare wire, no nicks. If the old copper is bent, blackened, or has a hook that's been reused three times, snip the end off and start clean — as long as you've got enough slack. Code generally wants six inches of free conductor in the box, so don't get scissor-happy.

Bend a hook with needle-nose pliers, open side facing clockwise. Slip it around the screw so the copper wraps roughly two-thirds to three-quarters of the way around, then tighten until the wire deforms slightly under the screw head. Tight, not stripped.

Colors, no exceptions:

• Black or red to brass. That's the hot.
• White to silver. That's the neutral.
• Bare or green to green. That's the ground.

On a single-pole switch, either brass screw works for either black wire. Switches interrupt the hot leg, and they don't care about direction. They do care about being upside down — the toggle should read ON when it's up.

Better receptacles have a back-wire clamp: you push the straight wire into a hole and the screw drives a metal plate down onto it. That's a proper connection and it's fine to use. It's NOT the same thing as a back-stab. The clamp has a screw; the stab doesn't.

If you're replacing a GFCI, the LINE terminals come from the panel and the LOAD terminals feed downstream outlets. Mix them and the GFCI won't protect anything past it. New GFCIs ship with tape over the LOAD side for exactly that reason.

Fold, seat, restore

Fold the wires back into the box like an accordion, ground first, hot last. Push the device in square. If the box is crowded and the device won't seat, don't force it — you'll crack something or loosen a connection you can't see anymore.

Screws in, plate on, breaker back on.

Now the plug-in tester. Two ambers means correct. Any other pattern means something's reversed or open, and the tester's legend tells you which. Press the GFCI test button on a protected circuit and confirm it trips and resets.

Where you stop and call someone

There are five conditions where a licensed electrician is the right answer, and none of them are about courage.

Aluminum branch wiring, which looks dull silver instead of copper and often has AL stamped on the jacket. Cloth or crumbling insulation. No ground at all, in a box you now want to put a grounded device in. Wires spliced with no box around them. And a two-hot box where both hots share one white neutral, because that one has a rule about how the breakers must be handled and a real consequence if you get it wrong.

Permit and inspection rules also vary by city and by state, and rental property changes the picture entirely. Ask your local building department what applies before you start counting a job as finished.

Twenty minutes, four screws, one photo. The part that matters is the chirp before your hands go in.
